Multi-Functional Cutting Mill CM100M
Multi-Functional CM100M, which is a unique product from Grinder. It is suitable for various soft, fibrous and hard dry samples. It can be used for batch processing and continuous coarse crushing and fine crushing.
CM100
Cutting Mill
CM100
Cutting Mill
- M1 Cutting Type:
can hadle fibrous, tough materials, such as tobacco, leather, circuit boards and so on; - M2 Cross Beater Type:
can deal with the mid-hard, brittle materials(hardness no more than 60Mohs, suchas slag, coke, soil and so on. - M3 Rotor Beater Type:
can handle soft , food samples, such as cereal, feed and chemicals
- Equipped with crushing dust collection device to prevent cross contamination
- It can be fixed on the floor and equipped with casters to move easily
- With quick locking device and motor braking, it has high safety performance
- The grinding process is rapid and produces less heat
- Through three different grinding accessories to achieve different functions, which is suitable for wider range of samples
- The size of the sample is controlled by the bottom sieve and sieve with different sizes can be selected
- A large amount of sample can be processed continuously, ranging from a few kilograms to several hundred kilograms per hour
- All the three types can be equipped with small sample receiver and cyclone separator which is convenient for sample collection, chamber cleaning and heat reduction
When the CM series is used with the cyclone separator it is suitable for handling light or small volume samples.
The use of cyclone separator extends the applications of the Cutting Mills.
It not only effectively solves the heat transfer problem during the grinding process so as to make cleaning easily, but also improve the uniformity and reproducibility of the grinding results
Techniques for achieving optimum grinding results
- For samples such as rubber and plastic, better results can be achieved by freezing or adding auxiliary materials
- For grinding requirements, the large aperture bottom sieve shall be used t=for pre pulverization and them the small aperture bottom sieve for fine grinding
- For flexible and heat-sensitive samples, the speed of less than 1000rpm while for the medium hard and soft samples, the speed above 1000rpm is preferred
Working Principle
M1 - Cutting Type
The sample passes through the hopper into the grinding chamber and is cut by the shearing action between a rotor and a fixed cutting bar. When the sample size is smaller than the aperture on the sieve plate, the sample falls into the collecting bucket.

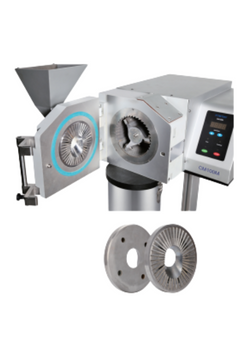

M3 - Rotor Beater Type
The sample enters the center of the chamber directly through the hopper. The sample is crushed between the rotor, embedded parts and sieve. Once the sample size is smaller than the pore size of the sieve, they will enter into the receiving container. The quick locking design of the mill door ensures the convenient and fast access to the crushing cavity, and also ensures the convenience of cleaning.

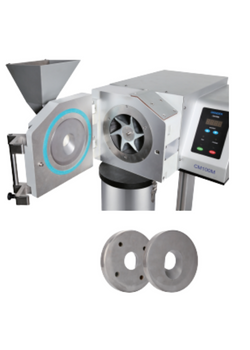

M2 - Cross Beater Type
M2 type grinds the samples through beating, impacting. The sample enters the center of the chamber through the hopper.
The sample is crushed between the impact plate and the gear of the embedded parts.
Once the sample size is smaller than the pore size of the sieve, they will enter into the receiving container.
The beater rotor draws a large amount of air through the hopper channel, thus accelerate the speed of the crushed sample departing from the crushing chamber.
